Orient-18xCA / AUC-18CA/I Air Conditioner – Full Technical Specifications

Overview

The Orient AUX-18xCA  are high-efficiency inverter split air conditioners designed for powerful cooling and heating performance. With energy-saving R32 refrigerant, low noise operation, and outstanding SEER/SCOP ratings, these models are perfect for homes and businesses looking for comfort and reliability.

Below are the complete technical specifications for both indoor and outdoor units.

General Specifications

• Cooling Capacity: 5.40 kW (1.30 – 5.90)

• Heating Capacity: 5.80 kW (1.30 – 6.10)

• Power Supply: 220-240V ~ 50Hz 1Ph

• Operating Current (Cooling): 6.40 A (2.20 – 6.80)

• Operating Current (Heating): 6.10 A (2.00 – 8.00)

• Energy Consumption (Cooling): 1430 W (290 – 1950)

• Energy Consumption (Heating): 1330 W (250 – 1800)

• Maximum Current Draw: 12.0 A

• Maximum Energy Consumption: 2400 W

• SEER / SCOP: 8.80 / 4.60

• Energy Efficiency Class (Cooling): A+++

• Energy Efficiency Class (Heating): A++

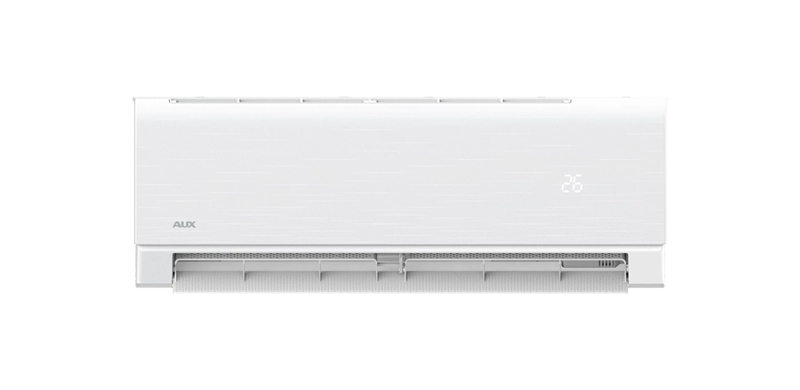

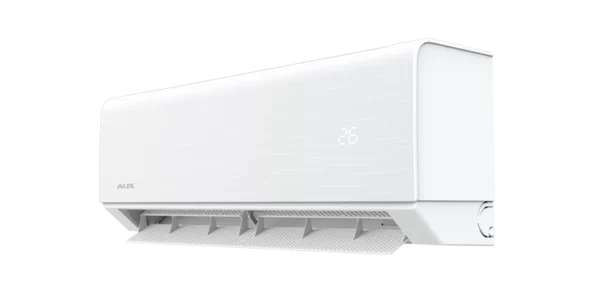

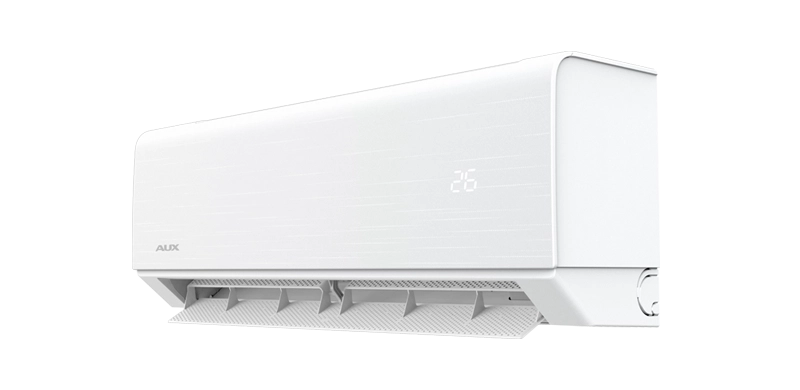

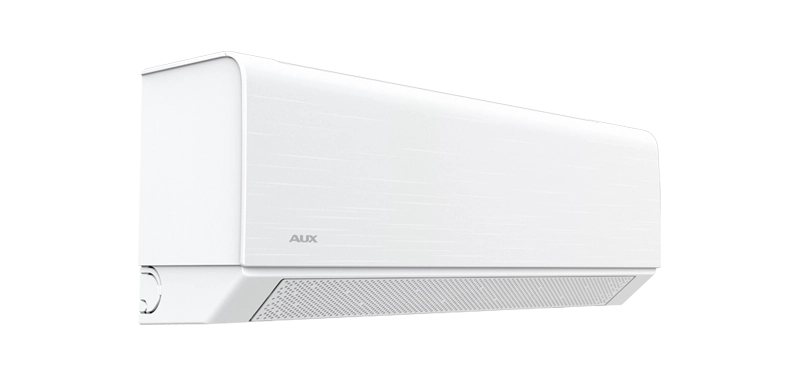

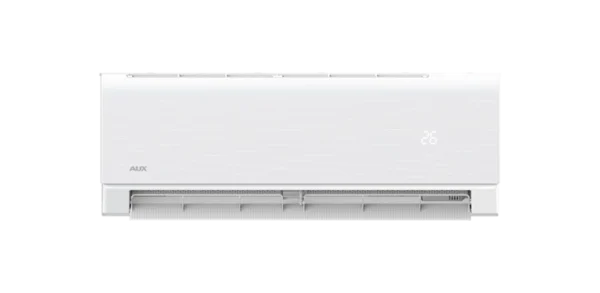

Indoor Unit – 18XCA/I

• Air Flow Rate: 1060 / 900 / 800 / 650 m³/h

• Sound Power Level: 56 dB(A)

• Sound Pressure Level: 21 – 49 dB(A)

• Dimensions (W x H x D): 1145 x 331 x 230 mm

• Weight: 13.0 kg

Outdoor Unit – 18XCA/O

• Refrigerant Type: R32 (Eco-friendly)

• Factory Refrigerant Charge (up to 5m): 1030 g

• Additional Refrigerant Charge: 20 g/m

• Sound Power Level: 63 dB(A)

• Sound Pressure Level: 53 dB(A)

• Dimensions (W x H x D): 785 x 300 x 555 mm

• Weight: 28.5 kg

• Operating Temperature Range (Cooling): -10 °C

• Operating Temperature Range (Heating): -30 °C
